Fixed Architecture DSP

Fixed Architecture DSP

There are 3 ranges in this group,>Timon, Solon and.Tycho.  TimonE is the entry level productc and shares many outstanding functions found on the other ranges.  Solon is aimed at general AV integration. it is expandable and includes a Dante option.  Tycho is aimed at Video and audio conferencing and has Auto Echo Cancellation and a telephone connection option

They share many of the same basic features:-

  • AGC, Expander, Compressor/Limiter
  • *5-Band Parametric EQ (Except 4x4)
  • 31-Band Graphic EQ (Only in 4x4)
  • Matrix-Mixer
  • Auto Feedback Cancellation
  • Auto Mixer (except 4x4)
  • Speaker Processor (EQ, Delay, Crossover, Filters)
  • RS-232 / GPI
  • 8 Presets
  • Tend-Ware Intuitive GUI Software
  • AMX & Crestron Compatible

They are availablein a variety of Configurations 4x4, 12x8,12x12 etc.  See data sheet for full range of options

Device Interfaces Compared

Click on the table to download and compare the features and  functions offered by the different systems in the three ranges

Interfaces Compared

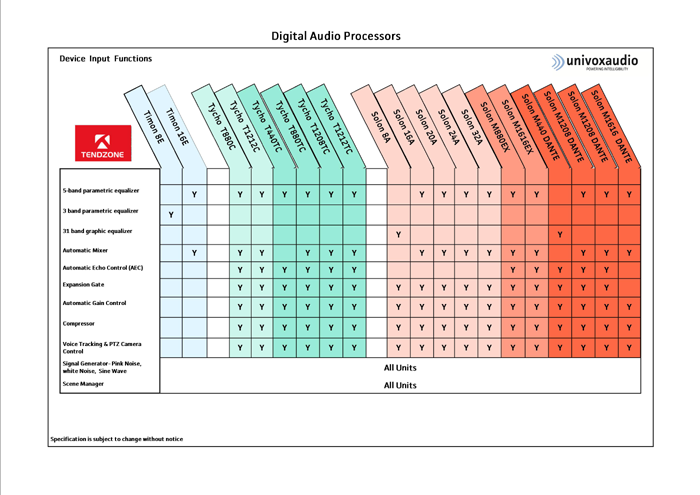

 Device Input Functions Compared

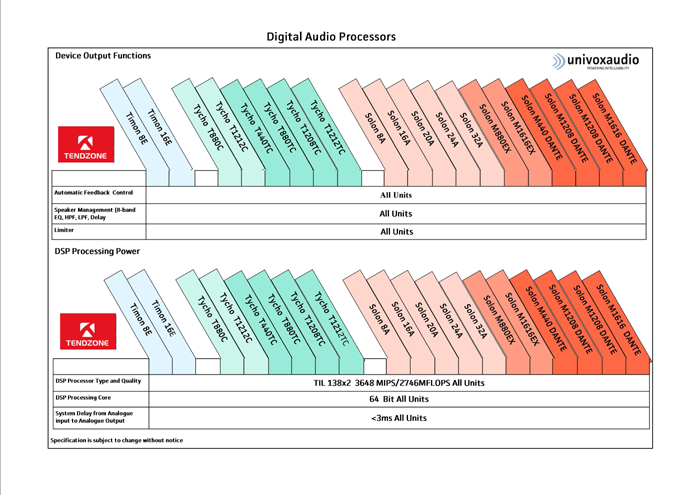

Device Output And Processing Compared

Tycho Series  Tycho Range

Available in 4x4, 8x8, 12x8, 12x12

The TYCHO Series from Tendzone is specially designed to meet the audio DSP needs of video conferencing and audio conferencing systems.

  • TYCHO Series DSPs offer
  • Acoustic echo cancellation (AEC),
  • Acoustic Feedback Cancellation (AFC)
  • Auto-mixing.

TYCHO TC models also feature an integrated analog telephone interface with a DTMF-standard dialer.

The TYCHO TC1212/CA model offers both a 4-channel/400watt amplifier and an integrated dual-channel wireless mic receiver.This model also comes standard with a choice of two wireless mic transmitters. (Customer may choose any combination of handheld or lavalier.)

All Tendzone DSP’s come packed with a standard toolkit of powerful processing and integration features. AGC, compressor/limiter, expander, and matrix mixing are core features to all models. (A 5-band parametric EQ is standard on all size configurations, except 4x4).

Tendzone's versatile speaker processor provides 8-band EQ, delay, crossover, and filtering. All Tendzone DSP’s include room noise reduction, which provides for discreet removal of certain persistent ambient background sounds. In addition, all DSP models come with a standard Tendzone bonus feature: PTZ camera voice-tracking.A dedicated RS-485 port provides bi-directional commands to most robotic PTZ cameras, allowing for mic-triggered recall of camera shot presets.All of these functions are configured using Tendzone's highly-intuitive Tend-Ware GUI interface./p>

Standard Features

  • AGC, Expander, Compressor/Limiter
  • *5-Band Parametric EQ (Except 4x4)
  • 31-Band Graphic EQ (Only in 4x4)
  • Matrix-Mixer
  • Auto Mixer
  • Speaker Processor (EQ, Delay, Crossover, Filters)
  • Auto Feedback Cancellation ( AFC)
  • RS-232 / GPI
  • 8 Presets
  • Tend-Ware Intuitive GUI Software
  • AMX & Crestron Compatible

Tendzone offers multiple control options for system integrators. Standard bidirectional control via RS-232, and GPI allows all Tendzone DSP’s to work with standard third-party control systems, including AMX and Crestron. Local room control is also available via Tendzone's array RC-LINK wallplate controllers.

These units provide bi-directional control and use PoE power, via standard Ethernet cabling. Tendzone DSP products are designed to be integrator-friendly, in terms of installation and field configuration.

Options

  • RC-LINK Panels
  • Analogue Telephone Interface
  • 2 Channel Wireless Microphones
  • 4X 100W Amplifier
Product DescriptionSpecial FeaturesModelChannelsDatasheetManual
TYCHO Series Digital Audio processor (4in4out) 31-band graphic equalizer, AGC , AFC , AEC & Analog TEL interface T440/TC 4/4 PDF PDF
TYCHO Series Digital Audio processor (8in8out) Automixer , AGC , AFC & AEC T880C 8/8 PDF PDF
TYCHO Series Digital Audio processor (8in8out) Automixer , AGC , AFC , AEC & Analog TEL interface T88TC 8/8 PDF PDF
TYCHO Series Digital Audio processor (12in12out) Automixer , AGC , AFC , AEC T1212C 12/12 PDF PDF
TYCHO Series Digital Audio processor (12in8out) Automixer , AGC , AFC , AEC & Analog TEL interface T12/8TC 12/8 PDF PDF
TYCHO Series Digital Audio processor (12in12out) Automixer , AGC , AFC , AEC & Analog TEL interface T12/12TC 12/12 PDF PDF
TYCHO Series Digital Audio processor (12in12out) Automixer , AGC , AFC , AEC , 4*100W Amplifier,2 Ch Wireless Mic T12/12CA 12/12 PDF PDF

Tycho Series

Tycho Series

Tycho Special Features

  • Room Noise Reduction
  • PTZ Camera Voice-Tracking

  • Acoustic Echo Cancellation (AEC)

Timon E Series

Available in 4x4, 8x8

With digital process technology being more widely available and affordable it is being used extensively in the audio industry and is becoming a core feature of sound reinforcement.

The Timone E series is simple to integrate and with its smart intuitive control software and modest price tag it is set to transform the way even the smallest sound reinforcement installations are conceived.

The Auto Feedback Cancellationl (AFC) function with military waveform comparison technology and advanced wave trap technology brings quick feedback suppression rendering any system more stable. Combined with the output protection limiter and gain sharing auto mixer your expensive speakers are protected and your audience never needs to endure the deafening squeal of audio feedback again

Options

  • RC-LINK Panels

Standard Features

  • Input: 4/8 balanced mic/line, bare wire terminal;
  • Output: 4/8 balanced line, bare wire terminal;
  • 24bit/48kHz excellent sound quality;
  • RS-232 Control compatible with video martix and other third part control system like AMX/Crestron
  • Auto Feedback cancellation (AFC
  • High Quality multi-level operation ensures the lowest background noise;
  • Limiter and 8 band PEQ for each output
  • Digital Algorithim crossover, Filter type (Bessel & Butterworth), Multilevel Slope adjustable
  • Signal routing and fucntion control can be easily realized via the software
  • RS-232 Control
  • Compatible with video martix and other third part control system like AMX/Crestron
  • High Quality multi-level operation ensures the lowest background noise;
  • Chinese and English version intuitive GUI selectable
  • User-friendly design; Easy connection with computer and other net device through the Ethernet.
Product DescriptionModelChannelsDatasheetManual

TIMON Series Digital Audio processor(4in4out)

TIMON 8E 4/4 PDF PDF

TIMON Series Digital Audio processor(8in8out)

TIMON 16E 8/8

Timon Series

Timon Series

TIMON Special Features

  • Automixer - provides intelligent management of multi-channels
  • mic - gain sharing algorithm ensures stability of the system.
  • Priority is optional.
  • Auto Feedback Cancellation.

Solon Series  Solon Range including Digital Audio Amplifiers

Available in 4x4, 8x8, 12x8, 12x12 &16x16.

The SOLON series builds on the standard fuctions found in the TimonE range with PTZ Camera Voice Tracking,  They are available in 5 sizes from 4 x4 to 16 x16 for general purpose  AV integration

The EX models are expandable up to 32 x32.  There is a  DANTE option.

They can be controlled using an easy to use GUI (graphcal User Interface) via a computer or by a programmable RC - Link panel

Options

  • RC-LINK Panels

Standard Features

  • AGC, Expander, Compressor/Limiter
  • *5-Band Parametric EQ (Except 4x4)
  • 31-Band Graphic EQ (Only in 4x4)
  • Matrix-Mixer
  • Auto Feedback Suppression (AFC)
  • Auto Mixer (not 4x4)
  • Speaker Processor (EQ, Delay, Crossover, Filters)
  • RS-232 / GPI
  • 8 Presets
  • Tend-Ware Intuitive GUI Software
  • AMX & Crestron Compatible
Product DescriptionModelChannelsDatasheetManual
SOLON Series Digital Audio processor (4in-4out) 31-band graphic equalizer, AGC & AFC SOLON 8A 4/4
SOLON Series Digital Audio processor (8in8out) 5-band Parametric equalizer, Automixer, AGC & AFC SOLON 16A 8/8
SOLON Series Digital Audio processor (12in8out) 5-band Parametric equalizer, Automixer, AGC & AFC SOLON 20A 12/8
SOLON Series Digital Audio processor (12in12out), 5-band Parametric equalizer, Automixer, AGC & AFC SOLON 24A 12/12
SOLON Series Digital Audio processor (16in16out) 5-band Parametric equalizer, Automixer , AGC , AFC
SOLON 32A 16/16
SOLON Series Digital Audio processor(4in4out) with DANTE module 31-band Graphic equalizer, AGC, AFC, AEC & 16 x 16 Dante Network Audio M440/DANTE PLUS 4/4
SOLON Series Digital Audio processor(8in8out) with DANTE module 5-band Parametric equalizer, Automixer, AGC, AEC, AFC & 16 x 16 Dante Network Audio M880/DANTE PLUS 8/8
SOLON Series Digital Audio processor(12in8out) with DANTE module 5-band Parametric equalizer, Automixer, AGC, AEC, AFC & 16 x 16 Dante Network Audio M1208/DANTE PLUS 12/8
SOLON Series Digital Audio processor (16in16out) with DANTE module 5-band Parametric equalizer , Automixer , AGC, AFC, AEC & 16 x 16 Dante Network Audio M1616/DANTE PLUS 16/16
SOLON Series Cascading Audio processor(8in8out) 128 DIGI-EXP expansion bus , Automixer, AGC , AFC & AEC M880/EX PLUS 8/8
SOLON Series Cascading Audio processor(16in16out) 128 DIGI-EXP expansion bus, Automixer, AGC, AFC & AEC M1616/EX PLUS 16/16

Solon Series

Solon Series

SOLON Special Features

  • Expandable, Up To 2 Levels (8x8 & 16x16)
  • PTZ Camera Voice Tracking
  • Room Noise Reduction
  • Dante Version (4x4,8x8,12x8,16x16)

Special Products and Wall Plates

The Auto Feedback cancellation function and Auto Echo Cancellation function found on some of the Tendzone products are also available in discrete units so you do not need to buy what you do not need.

In this section you will find:

  • Auto Feedback Cancellation Unit
  • Auto Echo Cancellation Unit
  • Nereus- Auto FeedBack Cancellation with Active Noise Cancellation Unit
  • Wall Plates for use with Fixed DSP series Solonn, Timon and Tycho

Special Products and Wall mountable Control Panels

Product DescriptionModelChannelsDataSheetManual
Special Products
Dual-channel High Performance Feedback Cancellation Unit AFC6-4 N/A
Multi-directional Echo cancellation Unit AVC12
Nereus -Auto FeedBack Cancellation and Active Noise
Cancellation Unit with 2mic, 2 mono line inputs/
2 mono line outputs

Control Panels
Key+Knob+Paging Style Control Panel(POE power supply) RC-MIX4 N/A

Key Style Control Panel(POE Power supply) RC-TP4 N/A
Knob Style Control Panel(POE power supply) RC-VOL N/A
Paging Style Control Panel(POE power supply) RC-PS N/A

Special Products & Wall Plates

Auto Feedback Cancellation Unit

Auto Feedback Cancellation Unit

Auto Echo Cancellation Unit

 Auto Echo Cancellation Unit

Wall Plates

Wall Plates
